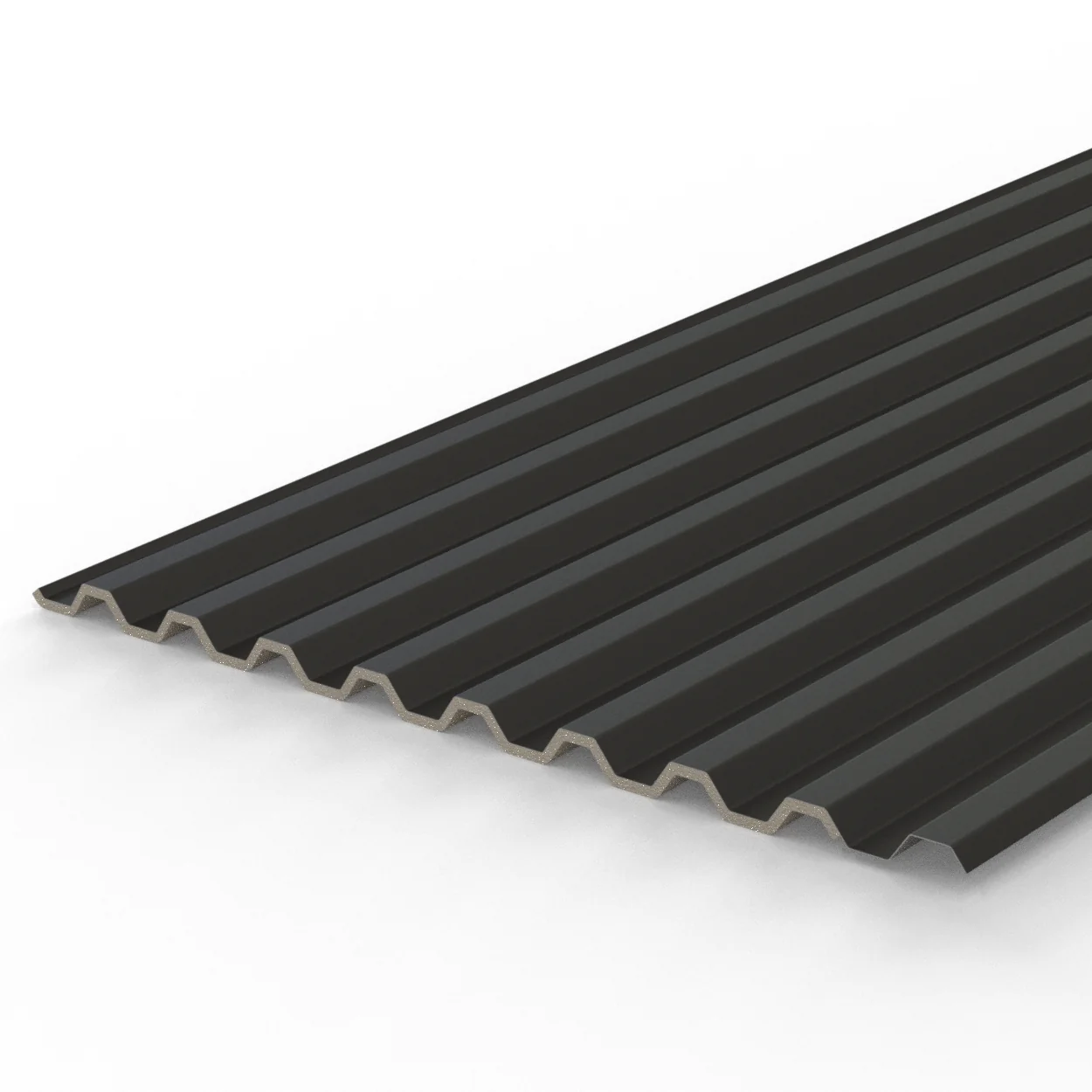

Metal Roof Sheet with 10mm Anticon Foam

The Metal Roof Sheet with 10mm Anticon Foam is an economical and effective replacement for traditional Anticon single skin metal roof sheets. This product eliminates the need for a separate Anticon liner by integrating 10mm of Anticon Foam directly into the metal sheet, providing superior insulation and condensation prevention at a lower cost.

Key Features:

• Cost-Effective Solution: A more affordable alternative to Anticon single skin roof sheets, with integrated foam for added value.
• Versatile Applications: Ideal for use on inclined, apex, or pitched roofs and as wall cladding, whether positioned horizontally or vertically.
• Wide Range of Uses: Suitable for industrial, commercial, public facilities, and agricultural buildings.

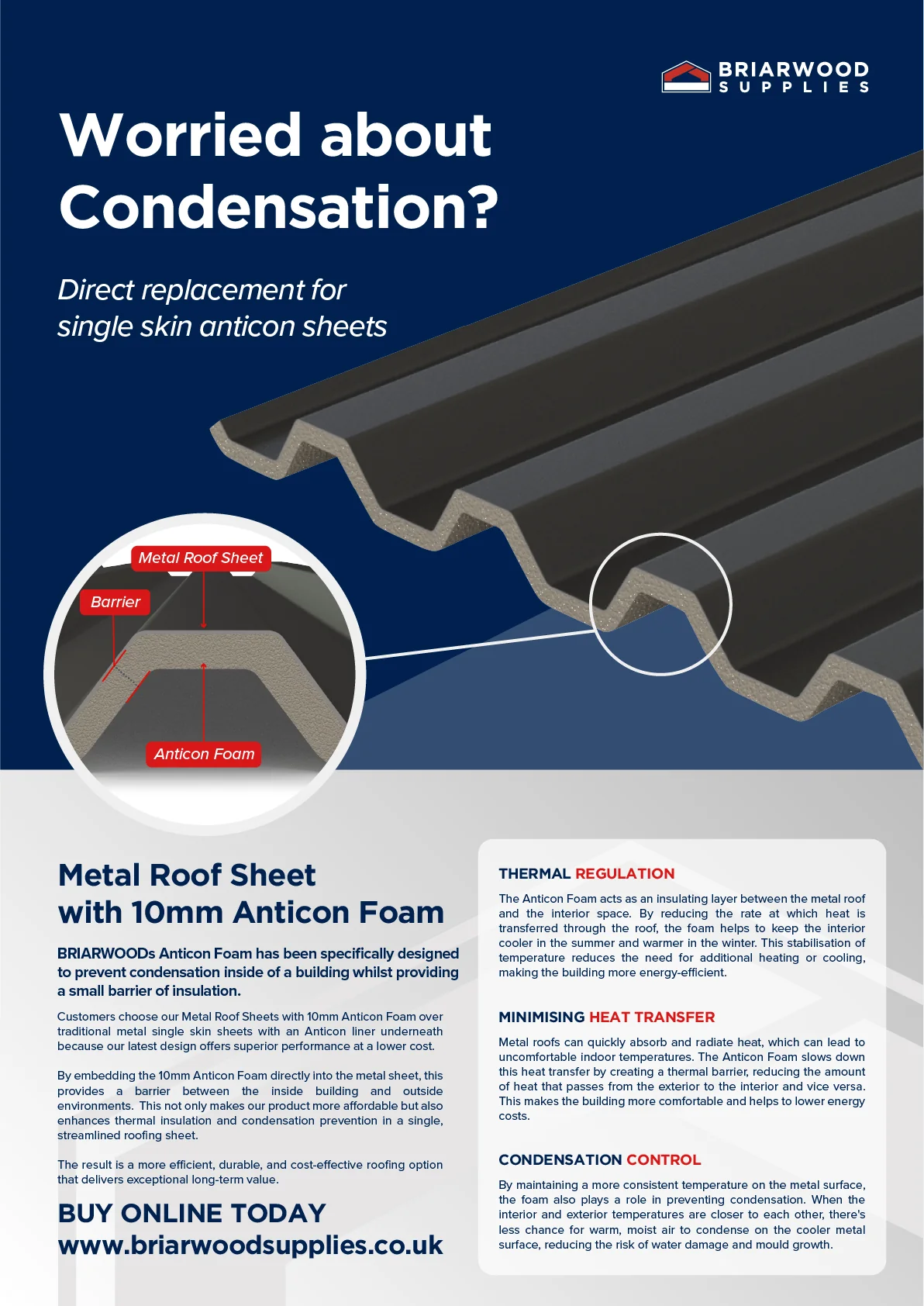

• Condensation Prevention: The 10mm Anticon Foam prevents condensation by maintaining a stable surface temperature and acting as a vapour barrier, ensuring a dry and comfortable indoor environment.
• Sturdy Construction: Durable metal sheets flanked by Anticon Foam offer robust protection and thermal efficiency.
• Significant Span Widths: Capable of spanning wide distances, reducing the need for additional supports.
• Minimum Installation Angle: Requires a minimum installation angle of 4 degrees to account for any potential sagging and ensure long-lasting performance.

With its integrated foam insulation and effective condensation prevention, the Metal Roof Sheet with 10mm Anticon Foam provides a reliable, cost-effective solution for high-quality roofing and cladding needs.

Specifications of Metal Roof Sheet with 10mm Anticon Foam

Dimensions

Length: Minimum. 3000mm / Maximum. 7000mm
Stocked Length: 3000mm, 4000mm, 5000mm, 6000mm, 7000mm.
Width: 1000mm

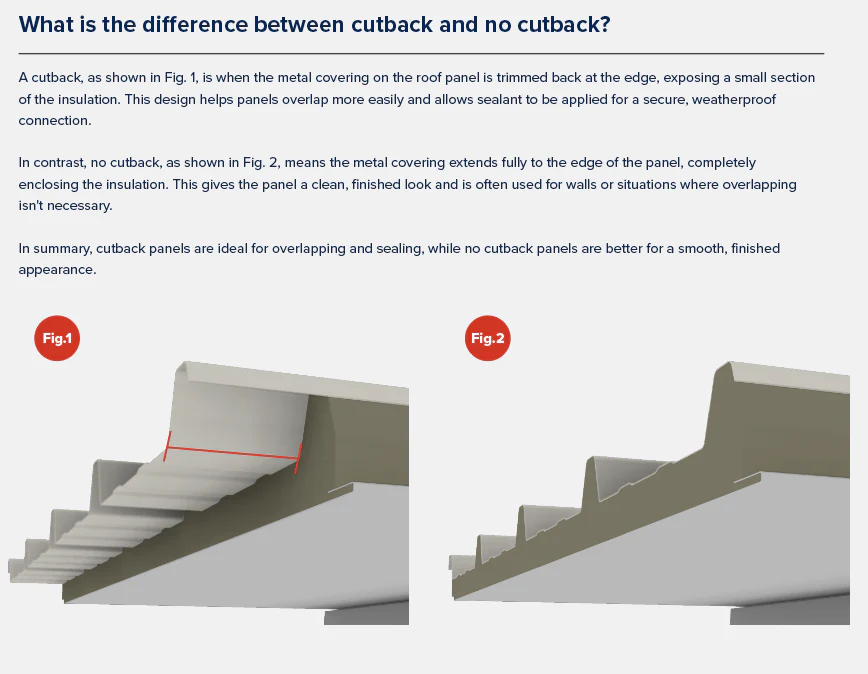

There is no cutback on this product

Thickness and weights

10mm: 7.45 kg/m²

Insulation

Core: Polyurethane rigid foam (PUR)
Density: 40 ± 5 kg/m³

Insulation table

Insulation thickness	U (W/m²K)	Thermal Resistance R (m²K/W)
10mm	1.44	1.24

Characteristics Table

Density with film	40 Kg/m³
Density without film	36-38 Kg/m³
Thermal conductivity	λ = 0.023 W/mK
Adhesion value	1 Kg/cm²
Compressive strength	≥ 1.2 Mpa
Traction resistance	≥ 0.10 Mpa
Cutting resistance	≥ 0.10 Mpa
Water absorption	≥ 95%
Operating temperature	from -40°C to +80°C

Loading tables

The table below shows the single span support centre distances for the Metal Roof Sheet with 10mm Anticon Foam.

Thickness	Weight (kg/m)	1m	1.25m	1.5m	1.75m	2m	2.25m	2.5m	2.75m	3m	3.25m	3.5 m	3.75m	4m3.75m
10mm	7.45	632	406	283	209	161	128	104	87	73	63	55	48	43

Reference standards

Fire classifications

• BS EN 13501-1: Fire classification of construction products and building elements
• EN ISO I 1925-2: Reaction to fire rests for building products
• BS EN 13823: Reaction to fire tests for building building products excluding floorings exposed to the thermal attack by a single burning item

Tolerances and calculations

• BS EN 14509 -Factory-made double skin metal faced insulating sandwich panels
